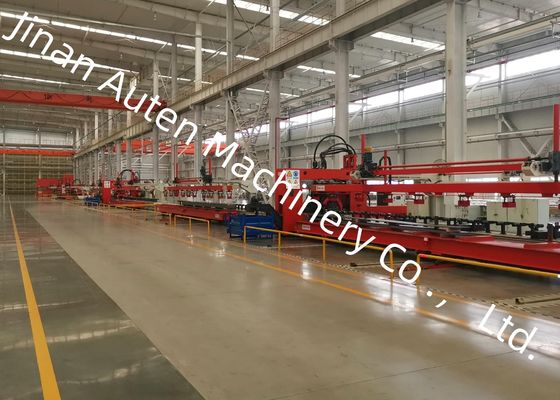

4-14mm Sheet Thickness CNC Punching Line For Auto Longitudinal Beams Flat Panels And Webs
Product Purpose and Characteristics
The automotive longitudinal beam production line is a high-efficiency, high-precision automated sheet metal processing system independently developed by our enterprise, specifically designed for the punching process of high-strength automotive longitudinal beams. It is highly applicable to the punching of longitudinal beams for ultra-wide and ultra-thick vehicles, covering mining trucks, special-purpose vehicles and other relevant vehicle types.
Basic parameters of abdominal flushing:
| Main machine body type |
Semi closed form |
| Sheet thickness |
4-14 mm |
| Length |
4000-15000 mm |
| Width |
Flat panel 200-750 mm
U-beam 200-500 mm
|
| Maximum tensile strength |
8b=510-950 N/mm2 |
| Main machine punching force |
1700KN,2000 KN (optional) |
| Number of molds |
20,25 |
| Max. punching diameter |
60mm (Customizable) |
| Equipment footprint size |
38000 x 7500 x 4500 mm |
Product purpose and characteristics:
For the wing surface processing, the production line adopts the upper front belly hole as the positioning hole. This design enables reliable, efficient, flexible, and fully automated punching of longitudinal beams with uniform cross-sections, and the equipment boasts excellent cost-effectiveness.
Automatic measurement and precision compensation for longitudinal beam profile deviations; Equipped with a well-configured control system—adopting Germany’s Siemens CNC system to enhance operational reliability; Features dual-channel control, delivering high processing efficiency; Employs filter-type stamping technology, ensuring the longitudinal beam moves only forward without backward displacement.
Basic parameters of abdominal flushing:
| Sheet thickness |
4-14 mm |
| Workpiece size (LxW) |
15000x380 mm |
| Main machine punching force |
800 KN |
| Number of molds |
6 or 7 |
| Punching diameter |
21mm (Customizable) |
| Equipment footprint size |
38000 x 7500 x 5000 mm |

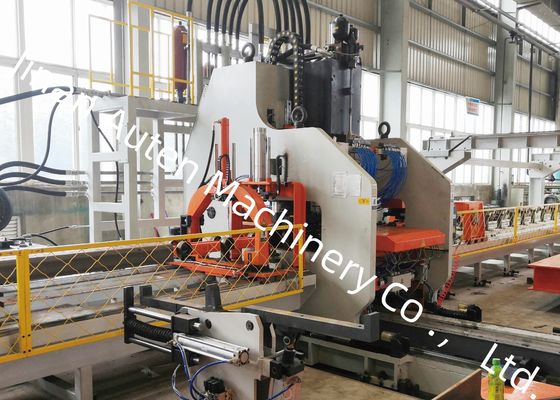

The control system incorporates the SIEMENS 828D CNC system, with servo motor-driven feeding. This configuration delivers high operational efficiency and ensures consistent workpiece precision. A servo-centered centering device is mounted on the feeding support roller, enabling it to accommodate the processing of variable-cross-section plates with a height difference ranging from 0 to 200mm.
The exhibition features a curated selection of finished longitudinal beam samples processed by this production line, covering a variety of specifications applicable to mining trucks and special-purpose vehicles. These samples vividly demonstrate the precise hole positioning, smooth punched edges, and overall structural stability achieved through the equipment.
This equipment is a custom-developed solution specifically engineered for the punching process of flat automotive longitudinal beams. It is primarily designed to machine the main beams of trucks and special-purpose vehicles, guaranteeing precise hole fabrication to fulfill the structural assembly requirements of these heavy-duty and custom-made automotive load-bearing components.
