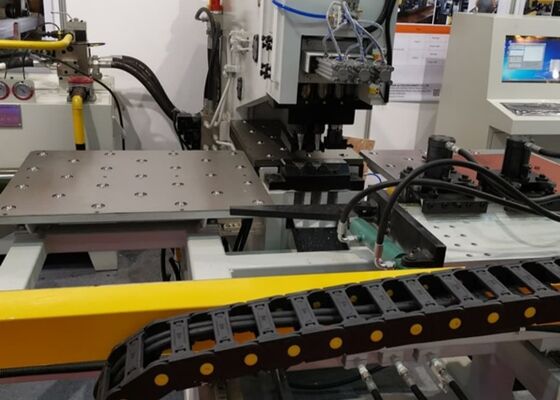

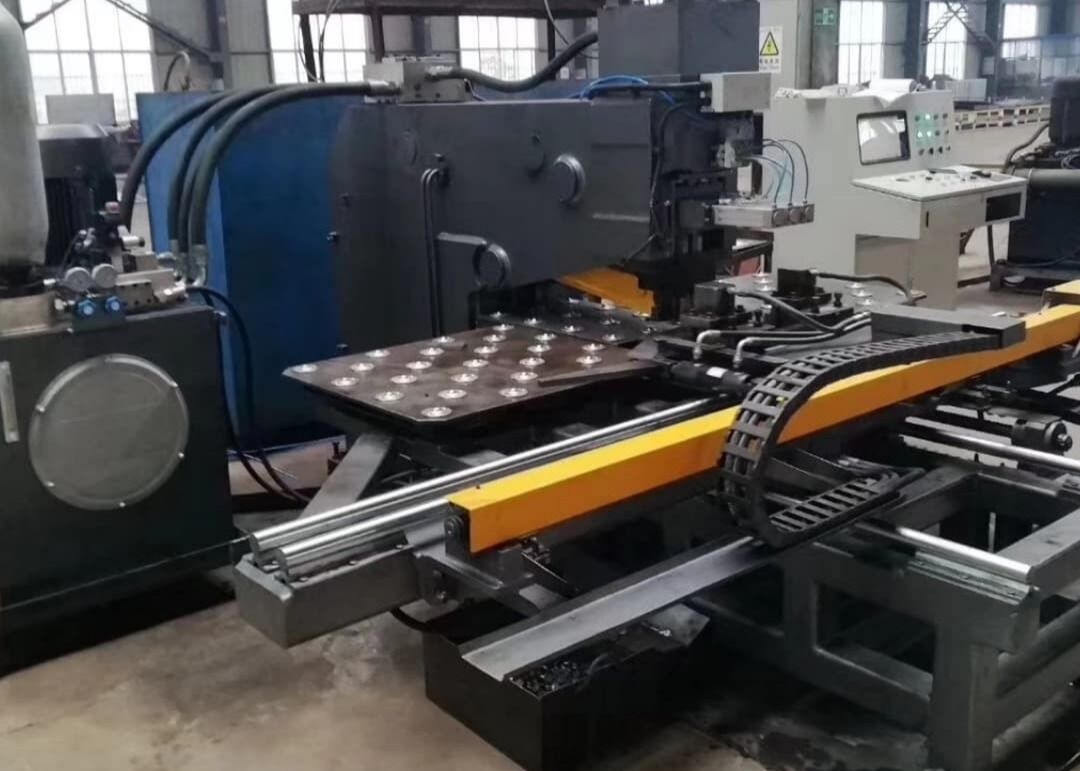

CNC Plate Punching Machine With Precise Punching Drilling And Marking Capabilities On Metal

1. Fabricated via C-type plate welding, the frame of the CNC channel steel punching and marking machine delivers superior structural rigidity and ample operational space. Outfitted with three die stations (one dedicated exclusively to marking procedures), the equipment enables automatic die station indexing to boost process efficiency. Its clamping mechanism provides flexible compatibility with a diverse range of workpieces, adopting a zero-reference baffle as the positioning benchmark; meanwhile, workpieces are secured on a ball-bearing worktable to guarantee unimpeded handling. The X and Y axis movements are powered by servo motors and transmitted via high-precision ball screws, with punching position calibration governed by a Programmable Logic Controller (PLC)—achieving full automation throughout the entire machining workflow. After the operator inputs the workpiece program, the program can be saved, retrieved, and reused for batch production operations.

2. The CNC steel drilling machine integrates cutting-edge Computer Numerical Control (CNC) technology and servo motor-driven feed mechanisms, ensuring superior operational efficiency and consistent workpiece precision.

3. Core functional components employ a modular design, enabling convenient maintenance and optimized repair procedures.

4. The CNC metal plate punching and marking machine allows for the integration of punching, marking, and drilling operations on a single metal plate, realizing multi-process integration within a single operational cycle.

5. The drilling module integrates critical functional attributes such as rapid downward feeding, precision machining advancement, and swift retraction—all of which significantly enhance operational efficiency in real-world working scenarios.

6. Outfitted with an intelligent fault self-diagnostic system, the equipment facilitates timely detection of operational anomalies, enabling preemptive maintenance interventions and ensuring uninterrupted production dependability.

7. The programming workflow is elaborately engineered with user-centric operability as its core tenet: operators can directly input hole diameters, hole position coordinates, and workpiece batch volumes into the control system. Furthermore, the system is compatible with the execution of programs produced by professional lofting software, or permits direct CAD/CAM file conversion to ensure seamless, high-efficiency program deployment.
