The Large Scale Angle Steel Punching And Shearing Machine With CNC Punching, Marking And Wire Cutting Is Used For Steel Structure Bridge Construction

Imagem Grande : The Large Scale Angle Steel Punching And Shearing Machine With CNC Punching, Marking And Wire Cutting Is Used For Steel Structure Bridge Construction

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	Auten
Certificação:	ISO9001
Número do modelo:	JNC1412

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	negotiable
Detalhes da embalagem:	Estojo de madeira
Tempo de entrega:	30 dias
Termos de pagamento:	L/c, t/t
Habilidade da fonte:	200 set/ano

Contato

Descrição de produto detalhada

Funções:	Punchando, marcando, cortando	Tamanho do ângulo （mm）:	∟40 × 40 × 3 ～∟140 × 140 × 12
Máx. comprimento de branco (m):	12	Máx. comprimento de acabamento (M):	10
Máx. Perfuração (dia. Х thi.) (Mm):	Φ26 × 12 （Material: Q345 510n/mm2）	Punchos de cada lado:	2
Força de perfuração (KN):	630	Força de marcação (KN):	630
Força de corte (KN):	1800

The large scale Angle steel punching and shearing machine with CNC punching, marking and wire cutting is used for steel structure bridge construction

Applicable Industry:

The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.

Specifications:

Functions	Punching, marking, cutting
Angle size(mm)	∟40×40×3～∟140×140×12
Max. length of blank (m)	12
Max. length of finished (m)	10
Max. Punching (dia. х thi.) (mm)	Φ26×12(Material:Q345 510N/mm2)
Punches per side	2
Punching force (kN)	630
Marking force (kN)	630
Cutting force (kN)	1800
Group of Marking letters	4
Number of letters per group	12
Dimension of letter (mm)	14×10×19
Cutting mode	Single blade cutting
CNC axes	3
Feeding speed of angle (m/min)	80
Cooling method of hydraulic system	Water cooling
Processing precision	Accordance with GB2694
Program function	Input by keyboard and USB interface
Dimension(mm)	28000×6500×2200

The Large Scale Angle Steel Punching And Shearing Machine With CNC Punching, Marking And Wire Cutting Is Used For Steel Structure Bridge Construction 0

Product Composition:

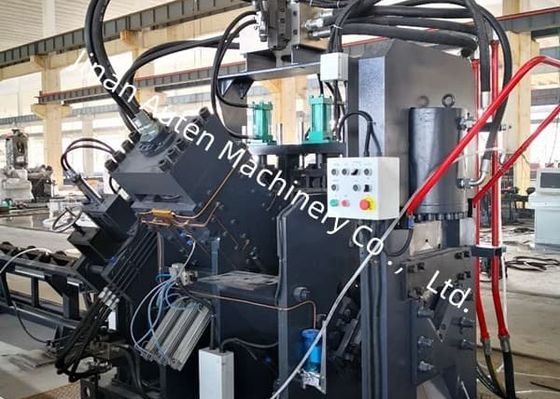

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.

The Large Scale Angle Steel Punching And Shearing Machine With CNC Punching, Marking And Wire Cutting Is Used For Steel Structure Bridge Construction 1

Product Feature:

1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.

The Large Scale Angle Steel Punching And Shearing Machine With CNC Punching, Marking And Wire Cutting Is Used For Steel Structure Bridge Construction 2

Our professional Angle steel integrated processing equipment helps power tower manufacturers efficiently handle large and high-strength Angle steel.

This integrated solution combines automatic punching, precise marking and efficient shearing, comprehensively optimizing the production process of all connecting parts from the tower body to the support. It significantly enhances assembly accuracy, connection reliability and structural durability, ensuring that the transmission tower maintains excellent stability and reliability even in extremely harsh environments.

We are willing to be your reliable partner in power infrastructure manufacturing, safeguarding your solid projects.
