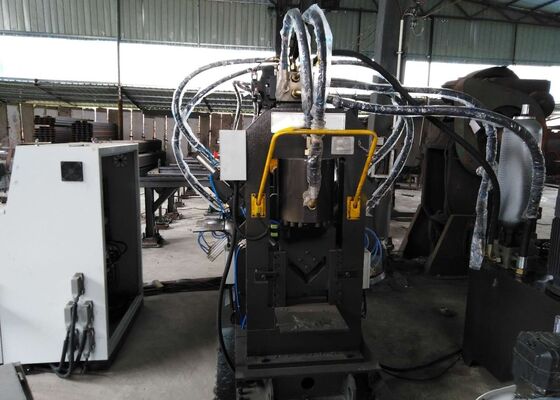

Cross-Arms Hoops In Electric Power Tower Iron Accessories Use CNC Punching Machine For Flat Steel
Product Introduction:
It is designed for punching, marking, and shearing on angle steel, flat steel, and channel steel. It is primarily utilized for fabricating cross-arms, hoops, five-hole connecting plates, flat pads, and benches used in electric power tower hardware. The machine enables punching, shearing, and typing in a single operation without the need for separate processing steps. It offers high processing accuracy, superior production efficiency, and can be operated by a single individual, featuring a straightforward and easily mastered operation.
Product parameters:
| Model |
JBC1010 |
| Functions |
Punching, marking, shearing |
| Angle size (mm) |
40х40х3～100х100х8 (slotted hole)
40х40х3～100х100х10 (round hole)
|
| Flat steel size (mm) |
40x3~140x10 |
| Channel steel (mm) |
80x5~140x8 |
| Max. hole diameter (mm) |
Φ22х50 (slotted hole), Φ26 (round hole) |
| Punching force (kN) |
800 |
| Marking force (kN) |
630 |
| Cutting force (kN) |
1250 |
| Max. length of blank (m) |
9 |
| Max. length of finished (m) |
9 |
| Punches per side |
3 |
| Group of Marking letters |
4 |
| Dimension of letter (mm) |
14×10×19 |
| CNC axes |
3 |
| Cutting mode |
Single blade cutting |
| Feeding speed of angle (m/min) |
80 |
| Processing precision |
Accordance with GB2694 |
| Program function |
Real time fault display |
| Programming mode |
Input by keyboard, RS232 interface,floppy disk and USB interface
|
Product Feature:

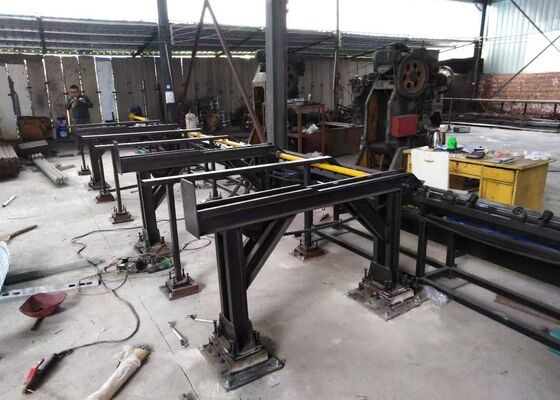

1. This machine primarily consists of a transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as integrated hydraulic, electrical, and pneumatic systems.
2. Featuring CNC technology and servo motor-driven infeeding, it ensures high efficiency and consistent workpiece accuracy. All critical hydraulic, pneumatic, and electrical components are sourced from globally recognized brands.
3. All primary cables, including rotary encoder cables and PLC communication cables, are imported shielded twisted-pair types, effectively preventing accuracy deviations caused by signal interference.
4. Equipped with a computer featuring a Chinese/English interface, it offers user-friendly operation and can display workpiece drawings. Programming is straightforward and compatible with data directly generated by lofting software. Only the workpiece dimensions, hole diameters, back marks, and quantity need to be entered when editing the program.
5. The angle line is equipped with a supporting and pressing device to accommodate the processing of angles with larger bends.
6. The front and rear loading units have been fully upgraded, adopting a new design that integrates guide rails with springs. This configuration is more rational and practical, eliminating the shortcomings associated with springs unable to bear the material load.
7. Equipped with a self-diagnostic function for fault detection.

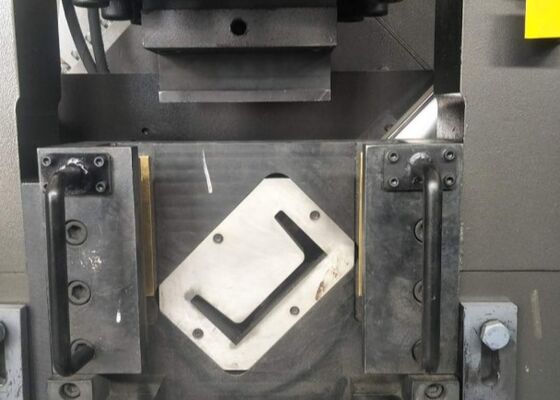

8. Single-blade shearing guarantees a smooth cut surface and optimizes raw material utilization.
This equipment is engineered for versatile CNC processing of structural steel elements, including the web surfaces of channel steel, both flanges of angle steel, and flat steel sections, which can also be formed into curved or arched configurations. It is capable of executing a variety of operations on these materials, such as precise marking, accurate punching, and superior-quality shearing, delivering comprehensive processing capabilities within a single setup. By integrating these multifunctional operations, the machine ensures efficient and precise fabrication of angle steel, flat steel, and channel steel components, making it well-suited for manufacturing custom structural parts, prototypes, and sample pieces with consistent quality and dimensional accuracy.
It is utilized for punching, marking, and shearing of angle steel, flat steel, and channel steel. It is primarily employed for the fabrication of cross-arms, hoops, five-hole connecting plates, flat pads, and benches used in electric power tower hardware.
