Process Angle Steel Flat Steel And Channel Steel CNC Punching Marking Cutting Line For Tower
Product Introduction:
It is utilized for punching, marking, and shearing operations on angle steel, flat steel, and channel steel. It is primarily applied in the fabrication of cross-arms, clamps, five-hole connection plates, flat pads, and support bases used in iron fittings for power transmission towers. The equipment enables integrated processing of punching, shearing, and marking in a single workflow without the need for separate operations. It delivers high machining accuracy, superior production efficiency, and can be operated by a single worker, featuring straightforward operation and ease of training.
Product parameters:
| Model |
JBC1010 |
| Functions |
Punching, marking, shearing |
| Angle size (mm) |
40х40х3～100х100х8 (slotted hole)
40х40х3～100х100х10 (round hole)
|
| Flat steel size (mm) |
40x3~140x10 |
| Channel steel (mm) |
80x5~140x8 |
| Max. hole diameter (mm) |
Φ22х50 (slotted hole), Φ26 (round hole) |
| Punching force (kN) |
800 |
| Marking force (kN) |
630 |
| Cutting force (kN) |
1250 |
| Max. length of blank (m) |
9 |
| Max. length of finished (m) |
9 |
| Punches per side |
3 |
| Group of Marking letters |
4 |
| Dimension of letter (mm) |
14×10×19 |
| CNC axes |
3 |
| Cutting mode |
Single blade cutting |
| Feeding speed of angle (m/min) |
80 |
| Processing precision |
Accordance with GB2694 |
| Program function |
Real time fault display |
| Programming mode |
Input by keyboard, RS232 interface,floppy disk and USB interface
|
Product Feature:

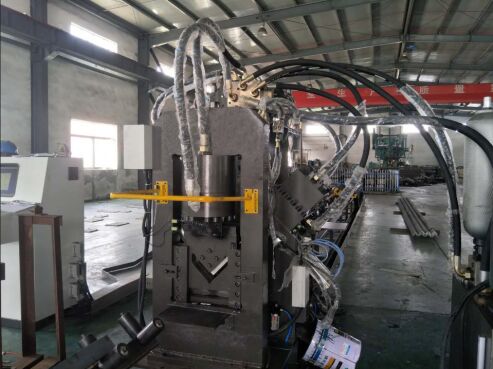

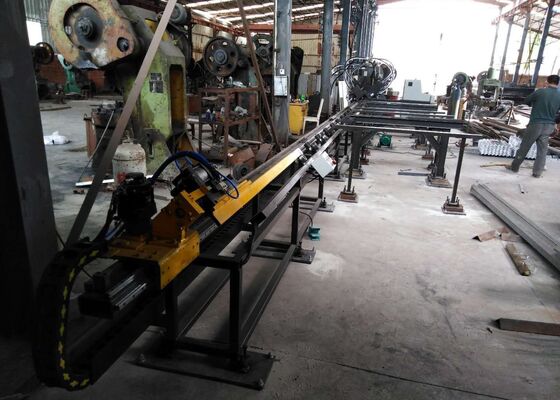

1. This machine is mainly composed of a transverse conveyor system, rotary loading unit, infeed conveyor, CNC feeding carriage, punching unit, marking unit, cutting unit, and discharge conveyor, as well as hydraulic, electrical, and pneumatic systems, etc.
2. It adopts CNC control technology with servo motor feeding, ensuring high efficiency and stable machining accuracy. Key hydraulic, pneumatic, and electrical components are sourced from internationally recognized premium brands.
3. All main signal cables, including rotary encoder cables and PLC communication cables, use imported shielded twisted-pair wiring to effectively eliminate accuracy deviations caused by signal interference.
4. The industrial computer features a bilingual Chinese/English interface, providing simple operation and the ability to display workpiece drawings. Programming is intuitive and can directly import data generated by nesting or lofting software. Only workpiece dimensions, hole diameters, back marking, and quantity are required during program input.
5. The angle line is equipped with a supporting and pressing mechanism to meet processing requirements for angle steels with larger bending deformation.
6. The front and rear feeding units have been fully upgraded, adopting a new guide rail and spring integrated structure, which is more rational and practical, effectively eliminating the issue of insufficient spring force during material feeding.
7. The system is equipped with a self-diagnostic fault detection function.

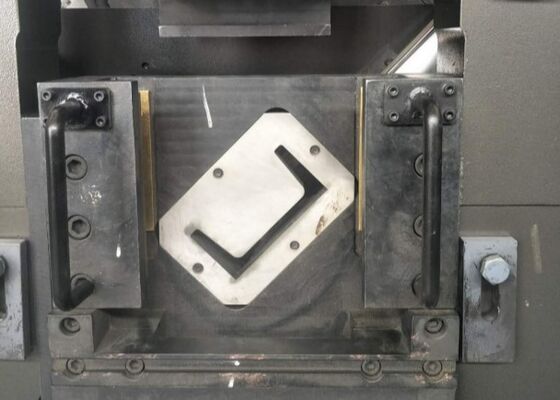

8. The single-blade shearing system ensures a smooth cutting surface while minimizing material waste.
This equipment is engineered for multifunctional CNC processing of structural steel components, including channel steel web surfaces, both flanges of angle steel, and flat steel sections, which may also be formed into curved or arched configurations. It is capable of executing multiple processes such as precise marking, accurate punching, and high-quality shearing, delivering integrated machining performance within a single setup. By enabling these comprehensive functions, the machine ensures efficient and high-precision fabrication of angle steel, flat steel, and channel steel parts, making it well-suited for the production of customized structural components, prototypes, and sample workpieces with consistent quality and dimensional accuracy.
It is applied for punching, marking, and shearing operations on angle steel, flat steel, and channel steel. It is primarily utilized in the manufacturing of cross-arms, clamps, five-hole connecting plates, flat pads, and support bases for iron fittings used in power transmission tower structures.
