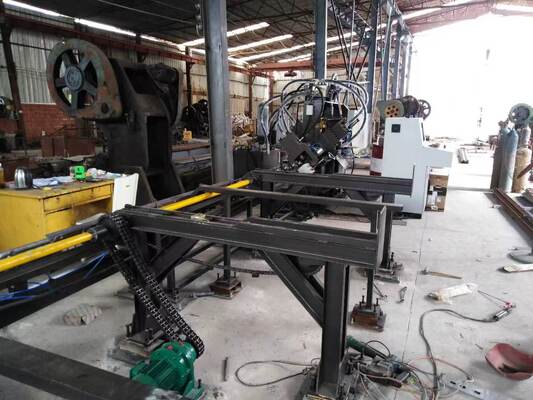

3-In-1 CNC Steel Punching Processing Line For Angle Steel Flat Bar Channel Steel 3 Punches Per Side

3-In-1 CNC Steel Punching Processing Line For Angle Steel Flat Bar Channel Steel 3 Punches Per Side

Product Introduction:

It is designed for punching, marking, and cutting operations on angle steel, flat steel, and channel steel sections. The equipment is widely used in the production of transmission tower fittings, including cross-arms, clamps, five-hole connection plates, flat washers, and support brackets. By integrating punching, marking, and shearing processes into a single production cycle, the machine eliminates the need for multiple standalone operations. It offers high machining precision, excellent productivity, simple operation, and can be efficiently managed by a single operator with minimal training requirements.

Product parameters:

Product Feature:

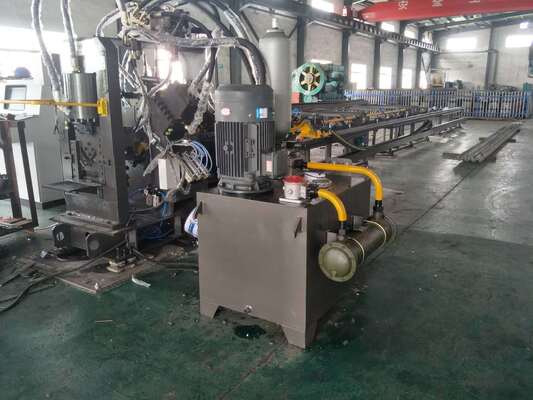

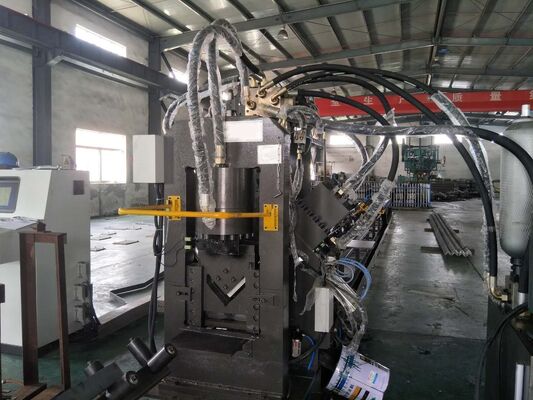

1. The machine primarily consists of a transverse conveying system, rotary loading mechanism, infeed conveyor, CNC feeding carriage, punching station, marking station, cutting station, discharge conveyor, as well as hydraulic, electrical, and pneumatic systems.

2. The equipment adopts advanced CNC control technology combined with servo-driven feeding, ensuring high production efficiency and reliable machining accuracy. Major hydraulic, pneumatic, and electrical components are sourced from internationally recognized manufacturers to guarantee long-term operational stability.

3. All critical signal transmission cables, including encoder wiring and PLC communication cables, utilize imported shielded twisted-pair cables to effectively prevent signal interference and maintain positioning accuracy.

4. The industrial control computer features a bilingual Chinese-English interface, offering user-friendly operation and graphical workpiece display. Programming is straightforward and supports direct import of data generated by CAD nesting or lofting software. Operators only need to input workpiece dimensions, hole specifications, reference markings, and production quantities.

5. The angle processing line is equipped with a specialized support and hold-down mechanism, enabling stable machining of angle steel sections with significant deformation or irregular profiles.

6. The front and rear feeding assemblies have been comprehensively upgraded with an optimized guide rail and integrated spring structure, providing improved feeding stability and effectively resolving issues associated with insufficient spring pressure during material advancement.

7. An integrated self-diagnostic monitoring system is included, allowing rapid fault detection and facilitating maintenance procedures.

8. The single-blade shearing mechanism delivers clean and smooth cutting surfaces while maximizing material utilization and minimizing scrap generation.

This equipment is developed for versatile CNC machining of structural steel components, including the web surfaces of channel steel, both flanges of angle steel, and flat steel sections, which may also be processed into curved or arc-shaped profiles. The machine performs multiple operations, including precise marking, accurate punching, and high-quality shearing, within a single integrated setup. By combining these functions, it ensures efficient, high-precision fabrication of angle steel, flat steel, and channel steel components, making it an ideal solution for customized structural parts, prototype manufacturing, and sample production requiring consistent dimensional accuracy and superior processing quality.

The equipment is utilized for punching, marking, and cutting angle steel, flat steel, and channel steel components. It is extensively applied in the production of transmission tower accessories, including cross-arms, fastening clamps, five-hole connection plates, flat pads, and support bases, ensuring efficient manufacturing and reliable product quality.
